Understanding of Capsule Sorting Machine
The capsule sorting tool is a special device that automatizes the method of sorting capsules. It differentiates capsules in keeping with dimensions and forms. The sorting technique employs holes at the rotating disk to locate the capsules which might be in the right shape and distinguish them from damaged ones.

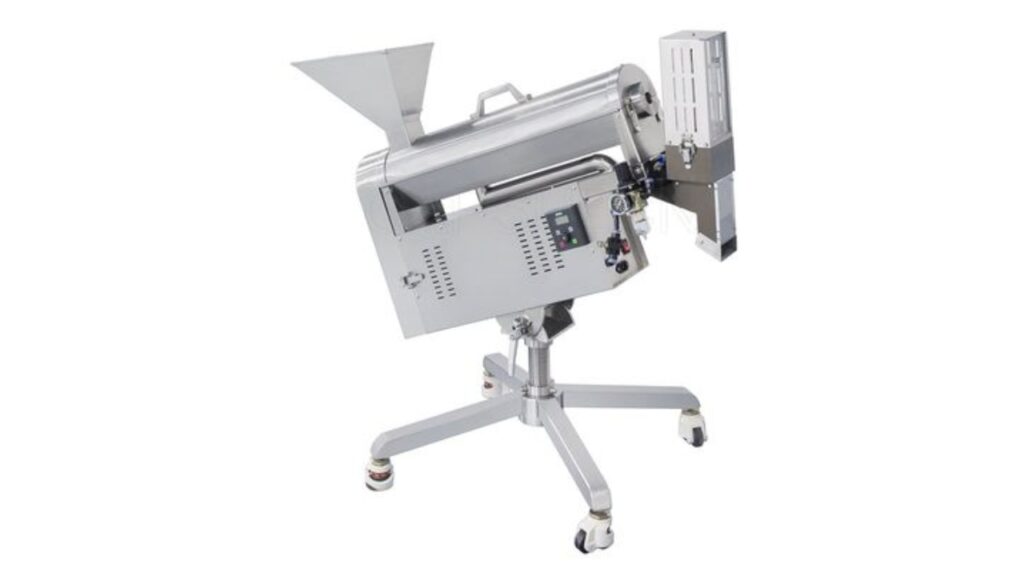

Components of Capsule Sorting Machine
Here is a quick precis of capsule sorting machine parts::
- Selection Disk: It is the primary sorting mechanism. It can also or may not come with a rim. It is tilted around 20 degrees to assist pills slide through.
- Calibrated Holes: The calibrated holes have numerous holes specially designed for the tablet’s size. Each hollow is made out of 3 additives:
- Conical Inlet: This is used to open and flip the tablets.
- Calibrated Segment: a little larger than the tablet to ensure the accuracy of sorting.
- Dropping Section: Allows capsules slide via when they have been sorted.
- Inlet Chute: The inlet chute is the doorway point for pills. They are constantly flowing in and drop off onto the disc for choice.
- Drive Shaft: The power shaft is the aspect that drives the disk that selects, which causes it to rotate after which the pills flow closer to the holes.
- Overflow Container: It captures any extra capsules within the occasion that there’s a lot coming in and/or if the disk is stopped.
- Scraper: A movable device that aids in helping capsules to enter the holes in the disk’s upward movement.
- Retaining Plate: It stops tablets and doughnuts from escaping openings by ensuring that they are vertically.
- Expulsion Blowing Curtain Method: It is the approach that blows away defective or non-conforming drugs to create a rejected field.
- Capsules with Dosing Problems: It collects drugs which can be identified as having dosage issues after sorting.
- Ejection Blowing Nozzle: It blows out tablets that have issues with meeting (e.g. Caught to each different).
- Outlet Chute: It redirects correctly sorting capsules on their way to the subsequent destination.
Together, they work efficiently and control tablets in line with their satisfactory and compliance
Operating Principle of Capsule Sorting Machine
A capsule sorting machine operates via feeding pills through an inlet chute to the choice disk. The disk is ready with holes which can be calibrated and might be in particular designed for positive pill sizes. As the disk spins the pills that skip through the holes fall into a collection area.
The gadget is made of important parts like a power shaft and an overflow box. Then, the drugs that agree to the specifications are discharged through the opening chute to allow processing.
Features of Capsule Sorting Machine
- Automatic Sorting: The automatic sorting makes it easier to kind out loose powder, unfastened caps and pills which can be defective.
- Defect Elimination: It gets rid of all deformed capsules as well as free powder and unfastened caps.
- Compact Design: The compact design set up requires handiest a small location.
- Quality Materials: It is made with chrome steel 316 and covered aluminum to ensure the durability of contact parts.
- Voltage Adaptability: It adjustment consistent with fluctuations in voltage so that it will ensure that the noise degree remains consistent within the vibrator.
- Quick Changeover: it is the switching system between extraordinary product formation that can take between three and five mins.
- High Accuracy: It allows for particular detection of any defects.
- Flexible Setup: It is simple to adapt to diverse products. Easily adaptable to various things.
- Space-Efficient Integration: Its compact footprint allows for an easy integration into distinctive setups.
Benefits of Capsule Sorting Machine
Lower Prices
Capsule sorting machines lower production expenses by boosting efficiency. It increases the throughput of manufacturing, which leads right now to savings groups.
Increased Accuracy
By reducing human mistakes, those machines guarantee consistency within the excellence of pharmaceutical products, which improves typical reliability.
Flexibility
The capsule sorters have the potential to accommodate a variety of dimensions and shapes for capsules without any adjustments. This makes them appropriate for diverse requirements in production.
Increased Performance
The capsule sorting machine is extremely speedy which allows manufacturers to boom production notably and meet increasing demand from the market correctly.
Simple Operation
The pill sorting machines are easy to use and may be used without prolonged training, allowing operators to pay attention to other vital tasks in production.
Types of Capsule Sorting Machine
There are a variety of capsule sorting machine, each one designed to meet unique demands for manufacturing and operational requirements. Here are few from them::
Automated Capsule Sorters
These machines completely automate the technique of sorting, enhancing performance at the same time as decreasing fees for exertions. They are able to sort massive portions of tablets quickly and correctly.
Semi-Automatic Capsule Sorters
It calls for manual entry, but resources significantly within the method of sorting are automatic. They are typically utilized in smaller manufacturing industries in which complete automation isn’t viable.
Vibratory Sorters for Capsules
By using vibratory movement, these devices separate capsules and sort them in line with the scale and form. They’re powerful in dealing with exclusive forms of capsules.
Gravity Capsule Sorters
This kind of sorters use gravity to find the capsule as they tour alongside a particular path. It is commonly much less complex and is suitable for small-scale manufacturing.
Camera-Primarily Based Sorters
They use cameras to see and sort drugs based on coloration shape, and defects on their surfaces. These ensure advanced precision for excellent assurance.
Magnetic Capsule Sorters
It enables the use of characteristics which can be magnetic, those devices are best for the applications that require magnetic identity.
High-Speed Capsule Sorters
This machine is designed mainly for pharmaceutical corporations that require high output. These machines are able to type big amounts of capsules in a brief time at the same time as ensuring accuracy.
Modular Capsule Sorters
They allow for customization and integration with manufacturing processes already in location. Which permits flexibility to accommodate various manufacturing necessities.
Applications of Capsule Sorting Machine
Pharmaceutical Industries
Capsule Sorting Machines essential within the pharmaceutical production industry. These ensure that only first-class capsules are packed. They reduce human blunders in sorting, improve precision in the exceptional of the product and growth performance of production.
Nutraceutical Industry
The machines are used to separate dietary supplements into capsules ensuring that dosing guidelines are adhered to. By segregating capsules which might be faulty they resource in keeping the integrity of the product and increase purchaser self belief. Additionally these allow efficient manufacturing cycles which could accommodate specific sizes of pills and formulations.
Food industry
The Capsule Sorting machines may be used in meals manufacturing to make products consisting of nutraceutical gels and functional meals. They make sure that tablets containing vitamins and these are calmly sortable. It enhances the satisfaction management procedure, dashing up the packaging system, as well as making sure that food safety follow legal guidelines.
Cosmetics Industry
Within the cosmetics industries capsules sorting devices are employed to make products including tablets for skin care or pills with oil.
It aids in keeping apart diverse cosmetic formulations in step with size, and ensures the consistency. It is vital to retaining the brand’s recognition and pride of clients.
Research and improvement
Capsule sorting machines are employed in labs to separate the compounds that might be being studied inside capsules.
The software helps the researchers by making sure speedy and precise handling of the substances. This can be essential to the integrity of experiments and reproducibility for scientific research.
